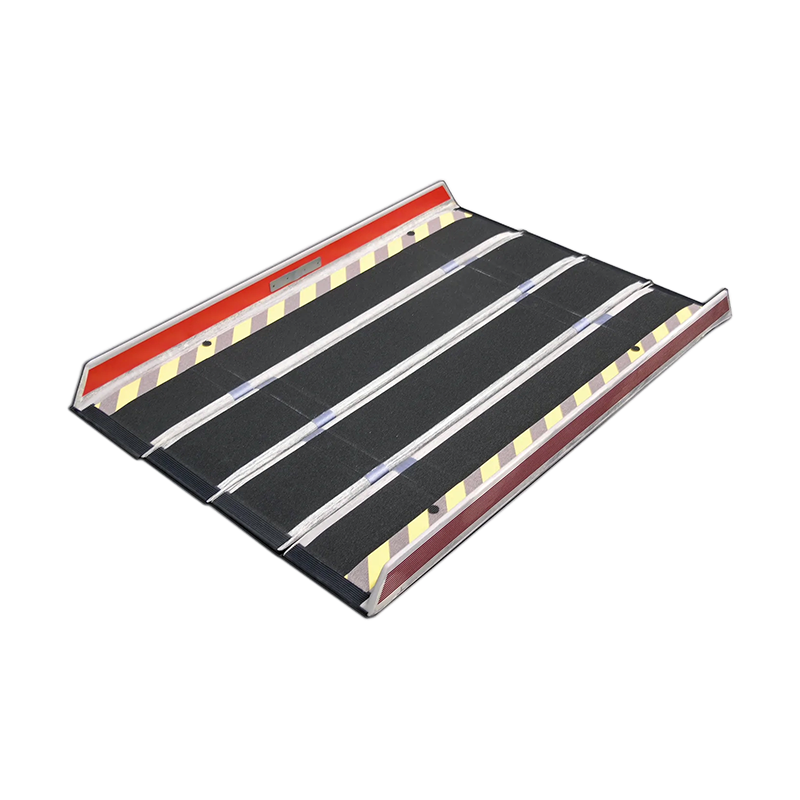

Invacare® Edge Barrier Limiter (EBL) Ramp

Price range: $864.00 through $4,945.00

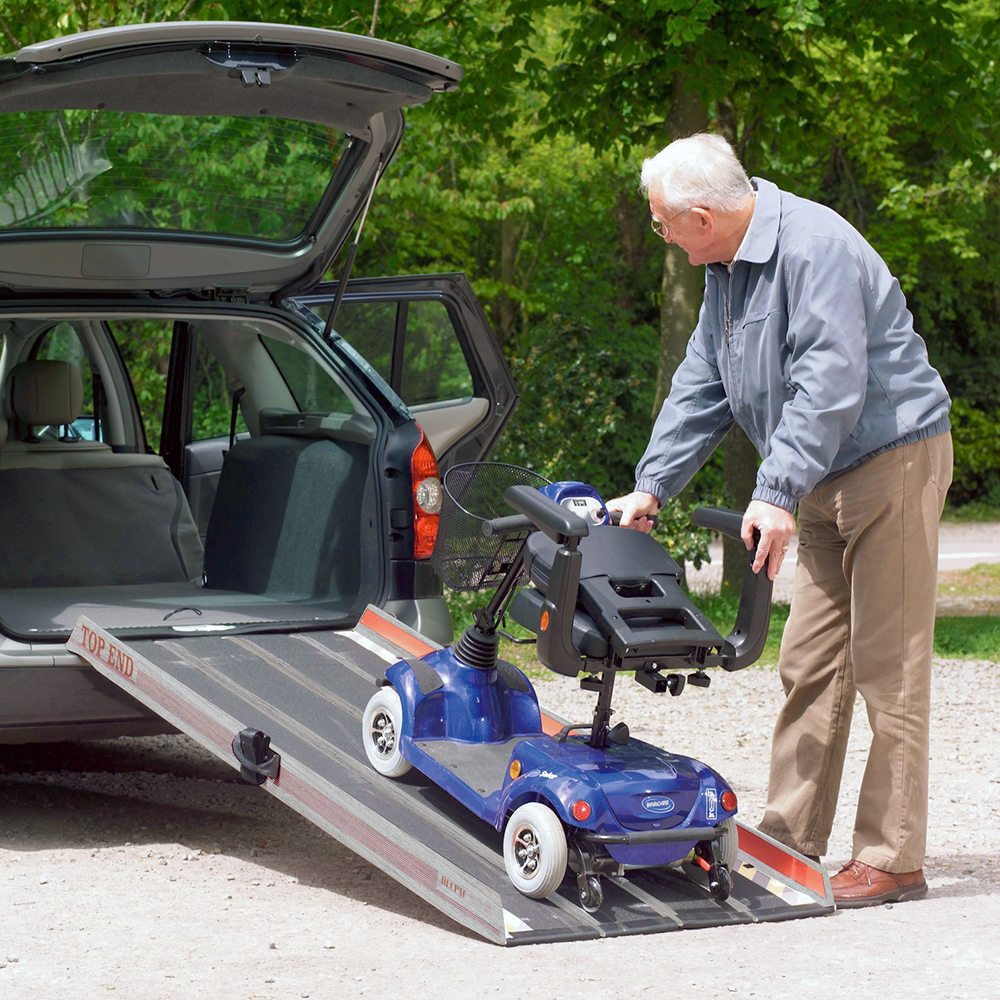

This portable ramp provides added safety with integrated edge barriers, making it ideal for providing quick access to buses, trains, buildings, and other locations where installing a permanent ramp is not practical.

Features & Benefits

  • Strong yet lightweight construction for easy handling

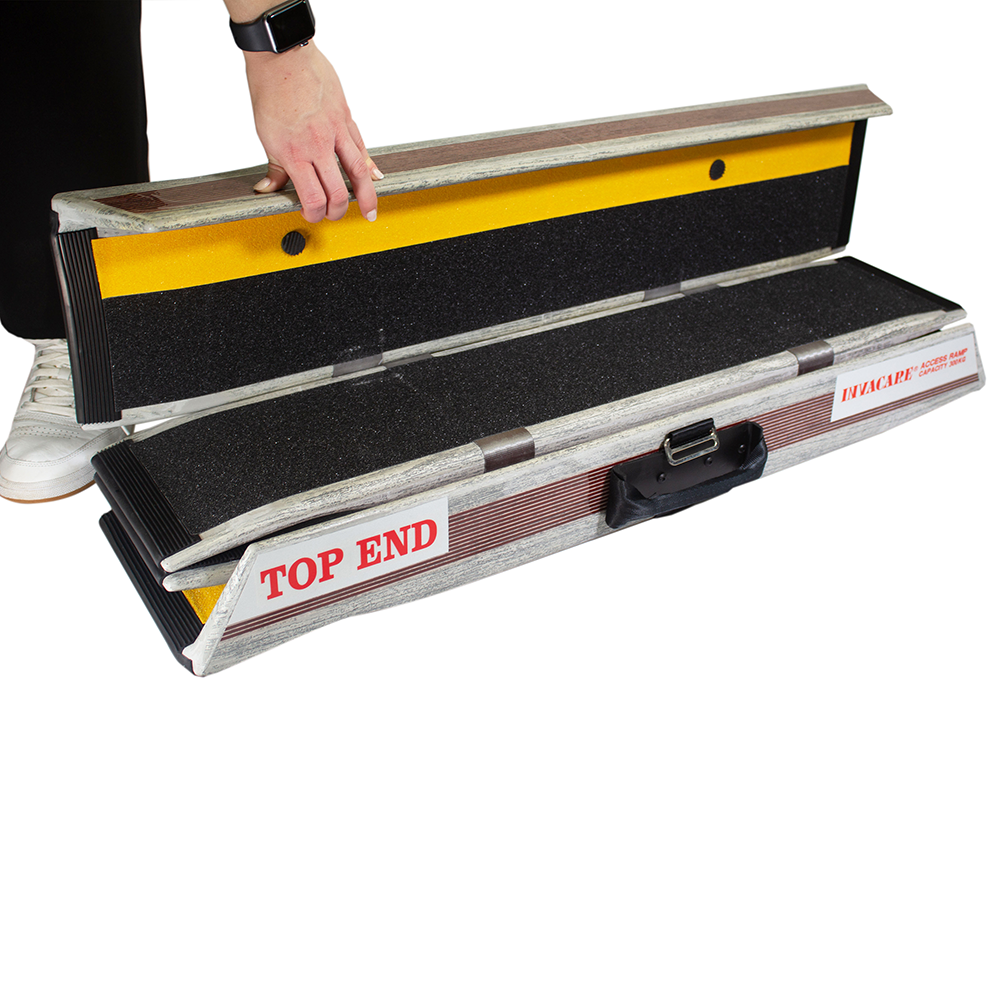

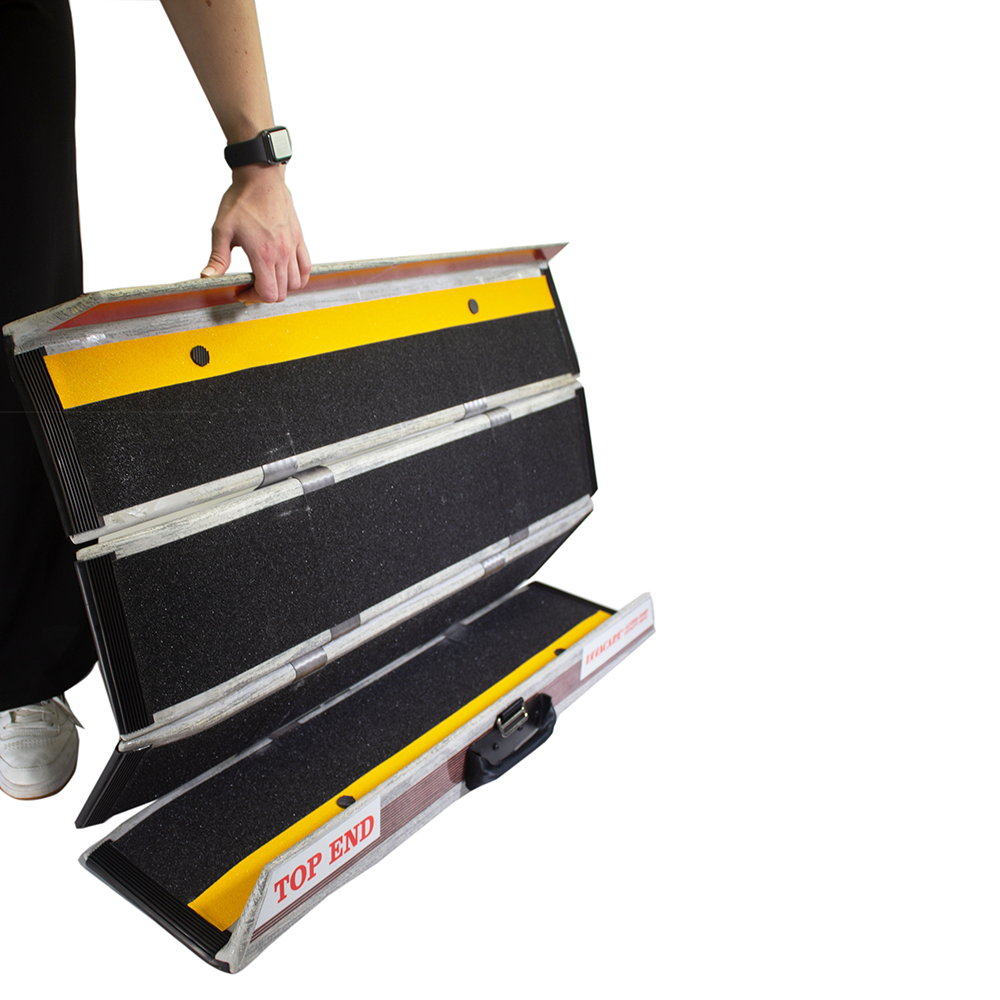

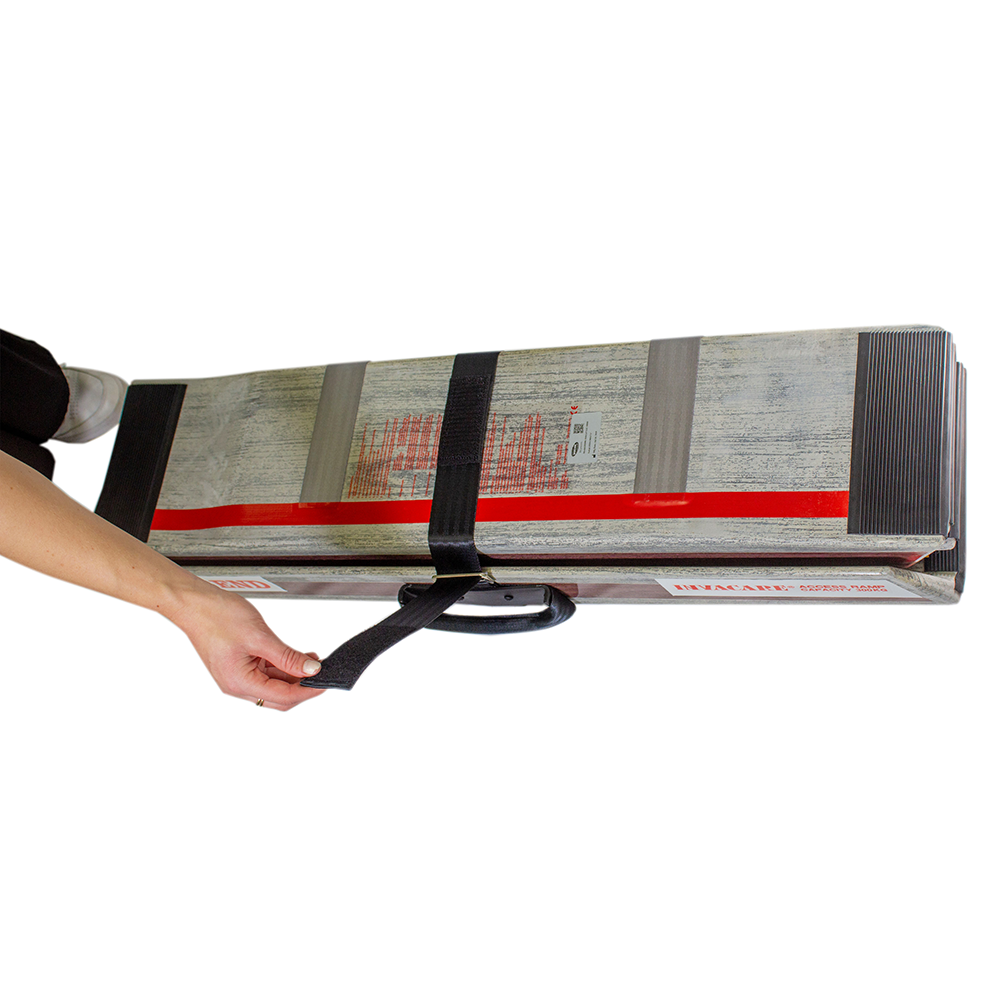

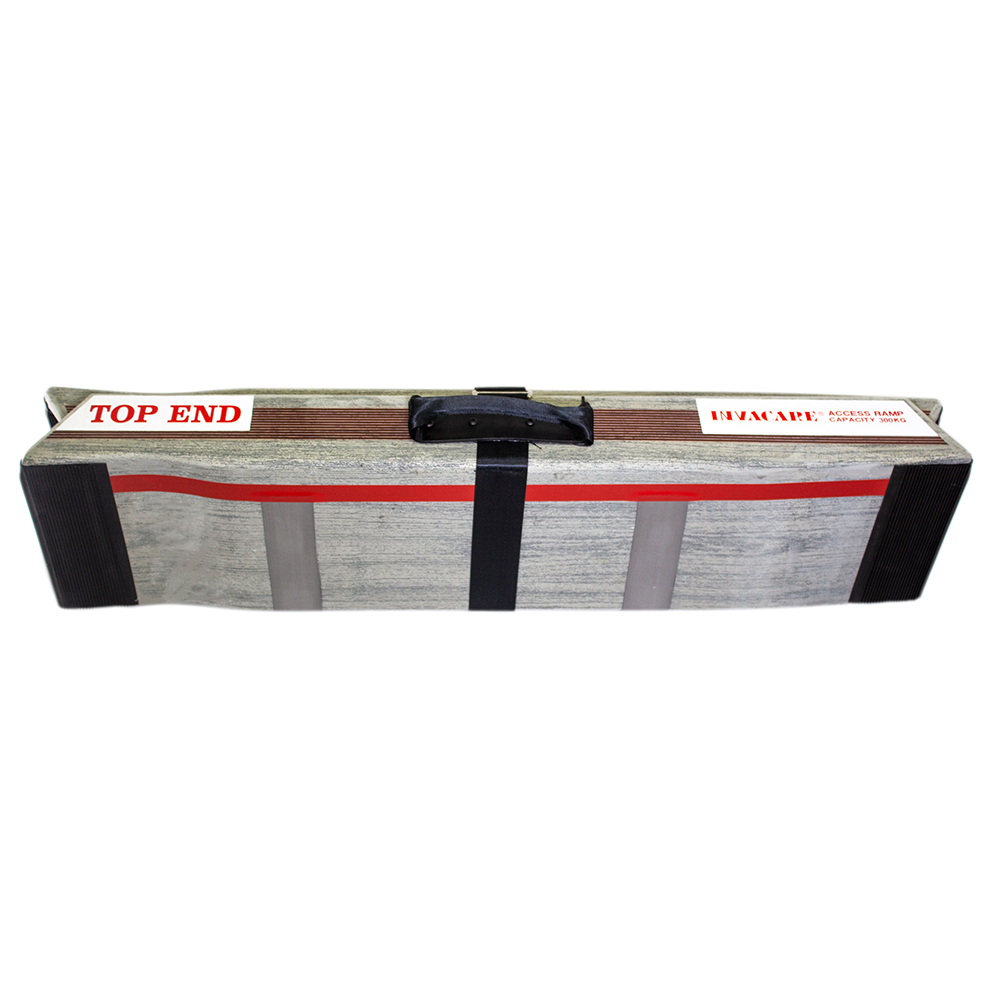

  • Concertina folding design allows the ramp to fold into a compact unit for convenient storage and transport

  • Manufactured using a unique combination of uni-directional glass and carbon fibre materials for superior strength and durability

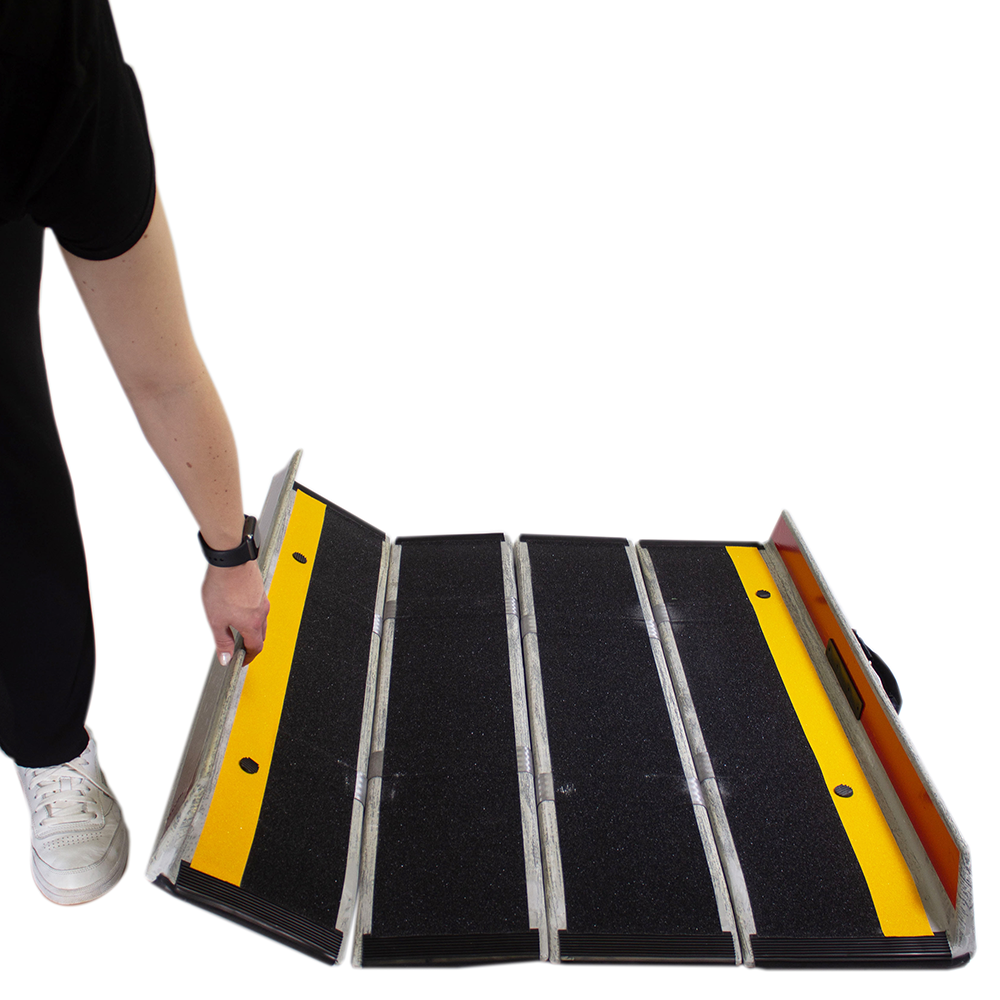

  • Multi-panel design connected with a patented hinge system and webbing, ensuring flexibility and stability

  • High-visibility markings with grip tape for improved safety

  • Non-slip surface, suitable for all weather conditions

  • Protective pads fitted at the top and base for stability and surface protection

  • No assembly requiredready to use immediately

  • Tested to Australian/New Zealand Standards (AS/NZ)

Safe Working Load (SWL): 300 kg

- +
SKU: N/A Category:
ModelLength (mm)Maximum Height Capacity (mm)Ramp Width (mm)Ramp Weight
EBL 0909002257506 kg
EBL 12012003007509.7 kg
EBL 135135033782011.1 kg
EBL 150150037582011.8 kg
EBL 165165041282011.8 kg
EBL 200200050082013.7 kg
EBL 250250062582023 kg
EBL 300300075082027.3 kg
EBL 350350087582031.5 kg
SIze

, , , , , , , ,
